Offer (November 22, 2022)
The online retailer “SinisMall”, which specializes in hobby supplies, has the ORTUR Laser Master 3 on offer for an unbeatable 536 euros. This clearly tops the last offer price of 650 euros!
Simply call up our exclusive discount code above and enter it in the shopping cart at SinisMall. The dealer specifies the delivery time as 3-7 working days.

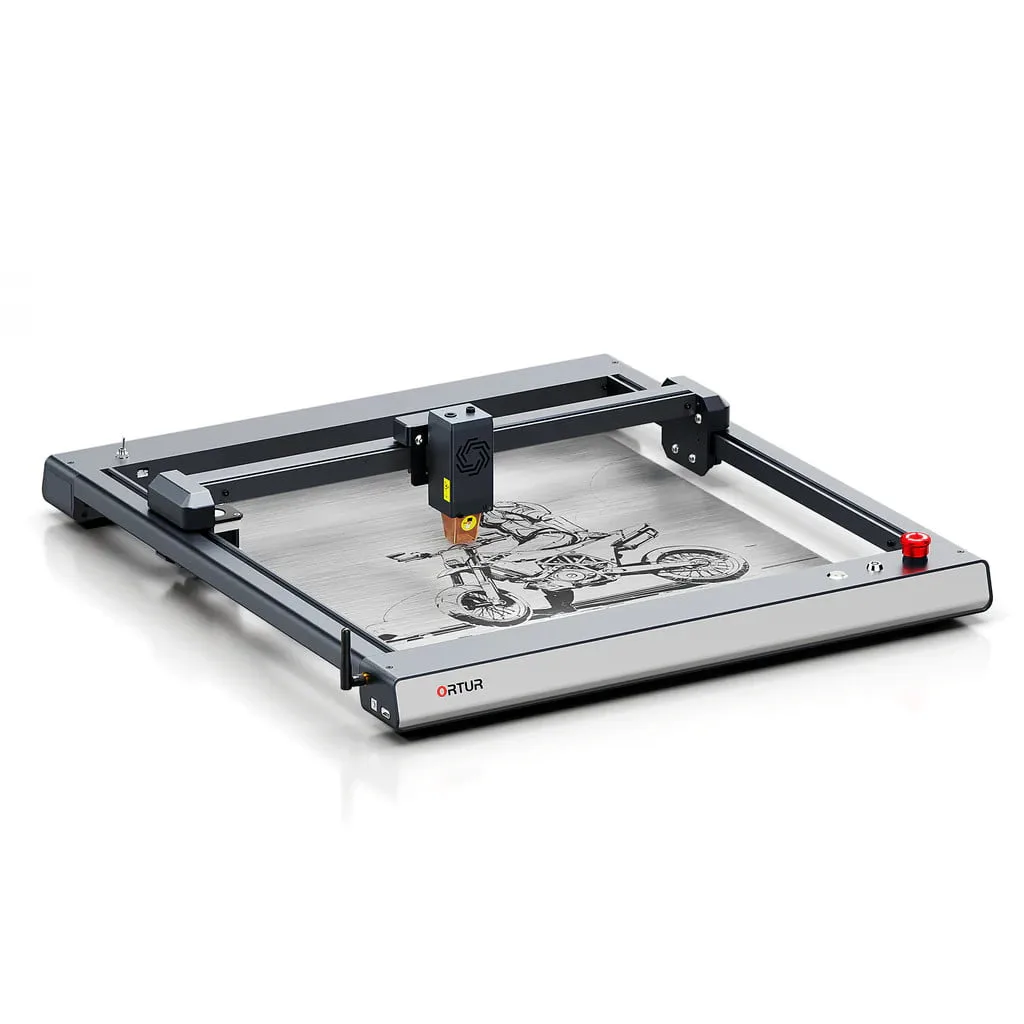

ORTUR Laser Master 3 product details
Exciting deal for hobbyists! ORTUR releases the new ORTUR Laser Master 3, which is the direct successor to the extremely popular ORTUR Laser Master 2 PRO and the ORTUR Laser Master 2 brings some improvements. First, let's compare the specifications of the Laser Master 3 with the Laser Master 2 PRO.
| Parameter | Laser master 3 | Laser Master 2 PRO |
| Laser | LU2-10A | LU2-4LF/SF | LU10-A | LU2-2 |
| Performance | 10w | 5.5W | 10W | 1,6W |
| wavelength | 455±5nm | 445±5nm |
| Focus | Fix | Fix |
| Speed | up to 20.000 mm / s | up to 10.000 mm / s |
| Area | 400 x 440 mm | 400 x 400 mm |
| mainboard | OLM-ESP-PRO-V2.4 | OLM MAXUP V10 |
| WiFi | yes | No |
| Safety | 1. Motion detection 2. Motor movement 3. UV protection 4. Fire alarm 5. Emergency stop 6. Heat Protection (Hot, Cold) 7. Security lock | 1. Motion detection 2. Motor movement 3. UV protection 4. Fire alarm 5. Emergency stop |
| Price | 630 Euros | 335 Euros |
Now with WiFi and app support
A new feature of the ORTUR Laser Master 3 is the support of the ORTUR app. For this purpose, the laser engraver is equipped with a WLAN module so that it can be connected to the home network.
The combination of app and new V2.0 Series Smart Firmware allows images stored on the smartphone to be transmitted to the laser engraver at the push of a button. Settings and controls can also be implemented via the app. In addition, LaserGRBL, LightBurn and Laser Explorer are supported as compatible software.
Ready to go in no time
The ORTUR Laser Master 3, which is mostly made of aluminium, is delivered in a total of 6 parts. The assembly takes just 3 minutes and requires no great craftsmanship. When set up, the engraving machine grows to a size of 58 x 55 x 15 cm and weighs 6,5 kg.
Powerful 10 watt laser
The laser module supplied is a LU2-10A with 9500 - 10500 mW laser power. It should be clear to everyone that this is definitely not a toy. The fine 0.05 x 0.1 mm laser point engraves even metal with the highest precision. Even cuts are no problem for the powerful laser.
It cuts wood up to 20 mm thick and acrylic even up to 30 mm. More than 1000+ materials can be processed with the Laser Master 3. Hobbyists are guaranteed to get their money's worth!
Two steppers (42 x 60 mm) on the X and Y axes ensure that the laser moves particularly gently and quietly over the 400 x 400 mm engraving area. ORTUR specifies the maximum speed for engraving as up to 20.000 mm/s. Hardly any other laser engraver in this price range can match this value!
Even more security
Safety is the alpha and omega of a laser engraver. In order to avoid accidents as far as possible, the ORTUR Laser Master 3 is equipped with various safety precautions. There is an emergency stop switch on the device itself, which stops all processes immediately. The Laser Master 3 can be locked with a security lock so that unauthorized access has no chance.
But there are also some safety precautions that are not visible to the naked eye. For example, the laser engraver recognizes temperature fluctuations, movements and voltage differences that interrupt the engraving process.
Specifications
| Features | Brand: ORTUR Model: Laser Master 3 Type: laser engraving machine Material: aluminum + powder-coated steel Laser: LU2-10A (9500 - 10500mw) Wavelength: 455 ± 5nm Focus: Fixed Speed: 0 - 20.000 mm/min Engraving area: 400 x 400 mm Motherboard: OLM-ESP-PRO-V2.4 |
|---|---|
| Dimensions | Weight: 6.5kg Size: 58 x 55 x 15 cm |
